www.mounttaylor.com/t120
Bruce McDowell
Spring 2007
3-14-07
OEET 120
Motors
www.mounttaylor.com/t120
Bruce McDowell
Spring 2007
|
Announcements |
|
Recently
added text is shown in a larger
font. |
Homework
b = beginning of class period, e = end of class period
| Assignment No. |
Max. Points |
Date Assigned |
Date Due |
Reading | Problems |
| HW 1 | 1-19 | 1-24 b | pp. 109 - 125 up to DC Generators. Special attention (italics indicate section names): Molecular Theory of Magnetism; effects of turns, current, and permeability of the core; Solenoid Construction; Solenoid Characteristics; Transients. | p. 139 #3, 5, 14 | |
| HW 2 | 1-29 | 2-5 b | pp. 77 - 103 up to` Control Circuit Troubleshooting. Special attention: Symbols on pp. 78 & 79; line diagrams | ||
| HW3 | 1-31 | 2-5 b | Learn DC motor and generator characteristics on the DC Motor & Generator Reference Page | ||
| HW4 (GB9-12) |
15 | 2-9 | 2-16 b | pp. 125 - 138 | Click
here for the problems. |
Lab
Work & Class Exercises
MS = MultiSim, RC = Real components, PP = pencil
and paper, b =
beginning of class period, e = end of class period
| Assignment No. |
Date Assigned |
Date Due |
Points | Description | |

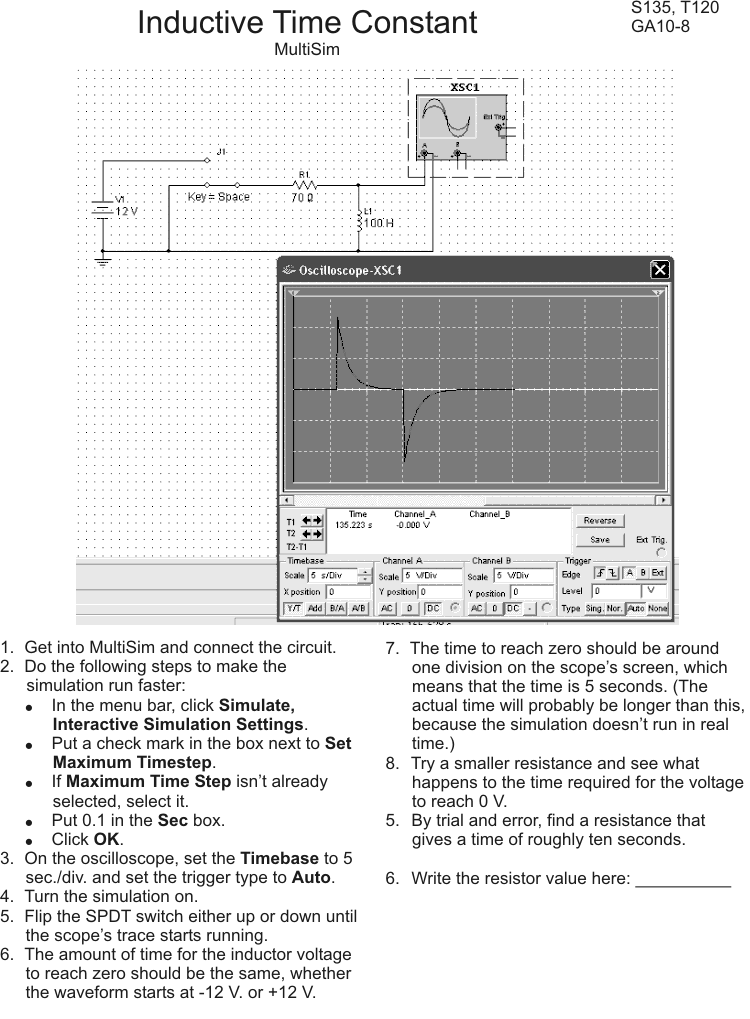

| GA10-8 | 1-19 | 1-24 e | MS | Handout: Inductive Time Constant (Anything that's blue and underlined is a link, and you can click on it to bring up the page that's linked to it.) | |
| GA19-16 | 1-19 | 1-24 e |
RC |
Capacitor-start motor coupled to DC generator; DC generator supplying power to run DC motor. Observe increase in speed of DC motor as field strength is decreased. | |
| GA22-13 part 1 |
1-22 | 1-31 e | 10 | MS | Start/stop buttons and contactor, Multisim |
| GA22-13 part 2 |
1-22 | 1-31 e | 15 | RC | Start/stop buttons and contactor, real components |
| GA29 - 14 | 1-29 | 2-5 e | 15 | MS | Starting on p. 101, simulate Fig. 5-23, 5-24, 5-26, and 5-28. When you're finished, show me all four circuits at once. |
| GA31-12 | 1-31 | 2-5 e | 50 | MS | Ladder Diagram Logic Circuits. Handout. |
| GA31-19 | 2-1 | 2-9 e | 30 | RC | Loaded Motors & Generators. Click here for directions. |
| GB5-12 | 2-12 | 2-12 e | 10 | RC | Remove the coil from a contactor, put it back in, and show that it works. |
Extra
Credit
MS = MultiSim, RC = Real components, PP = pencil
and paper, b = beginning
of class period, e = end of class period
| Assignment No. |
Date Assigned |
Date Due | Description | |
| GB2-11 | 2-5 | 2-12 e | RC | Build a 120 VDC power supply. Handout. |
Reference
| DC Motor & Generator Reference Page |
My
links to Web sites with
information about electronics and the electrical trades: mounttaylor.spaces.live.com
(Additions are frequently made to these links.) |
MultiSim Hierarchical Blocks |
