HB12-14 Diode Bridge
Multisim  15 points
OEES 205

Back to Main Page

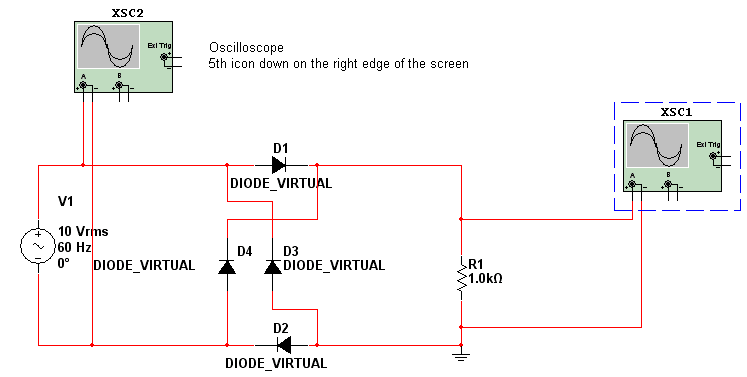

    1. Draw the circuit in Multisim
    2. Adjust the two oscilloscopes so that the waveforms stay synchronized and so that you can see them clearly
      • Use Normal triggering
      • For the scope across the load resistor, you'll need to use a trigger level higher than zero.

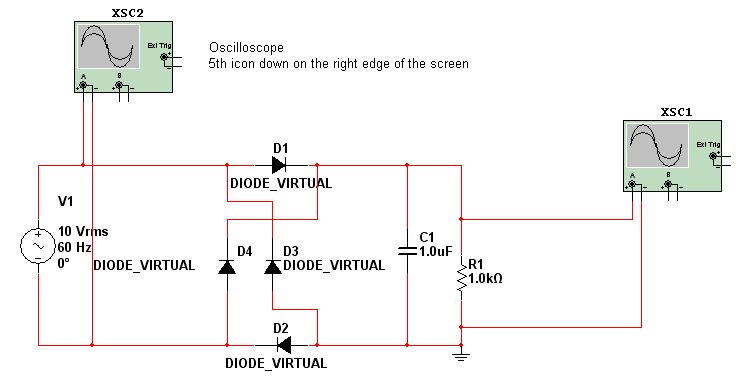

    1. Add a capacitor across the power supply's output as shown above.
    2. Increase the size of the capacitor until you get a ripple voltage less than 10 mV. What size capacitor did you end up with? _____________
