Homework GC8-8--1st and 2nd Harmonics
Pencil and Paper                 10 points

OEES 135, OEET 210

Back to Main Page



x

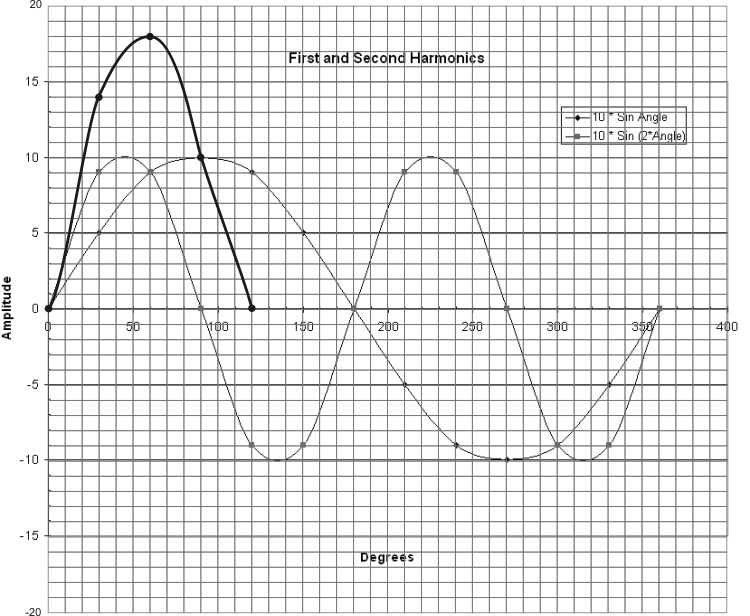

  • Plot eight more points by algebraicly adding the points on the two lighter waveforms.
    • "Algebraicly" means to take signs into account.
  • Draw a curve between the points you've plotted.
